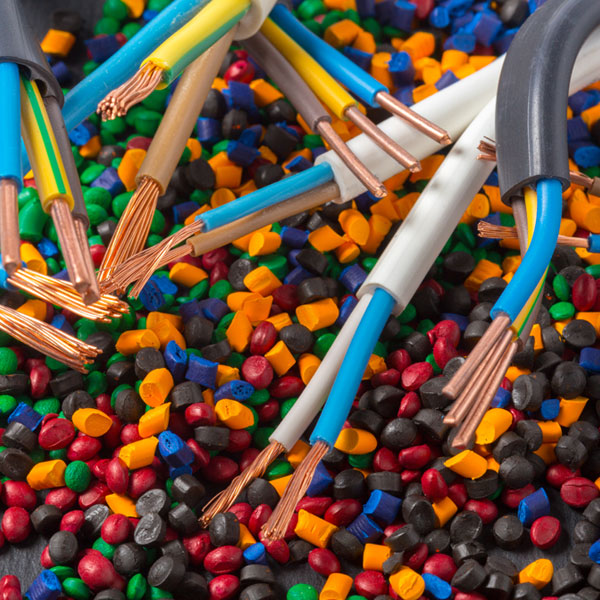

Terraflex ofrece una línea de alambre de vinilo RoHS y compuestos para cables. También tenemos disponibles compuestos de PVC sin ftalatos y que cumplen con REACH, para aplicaciones que deben cumplir con los estándares regulatorios más exigentes. Los compuestos para cables y alambres de Terraflex pueden ser usados para aplicaciones tales como:

Cables eléctricos de alta temperatura (en cumplimiento con los estándares CEI, BS, VDE, UL, etc. correspondientes)
Cables automotrices (de conformidad con ISO 6722)
Alambres para construcción

Tallas

132 NAT

Application: wire insulation

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.42-1.46
Hardness	ASTM D 2240	SHORE A	85-91
Tensile Strength	ASTM D 638	n/mm2	> 16
Elongation	ASTM D 638	%‏	> 245
Thermal Stability	200°C	minutes	> 60

137 NAT

Application: High Temp. Sheath and Insulation
Standards: BS 6746 Type 4, UL 1581, UL 83-105C

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.34-1.40
Hardness	ASTM D 2240	SHORE A	80-86
Tensile Strength	ASTM D 638	n/mm2	> 15
Elongation	ASTM D 638	%‏	> 280
Thermal Stability	200°C	minutes	> 60
Flame Retardant			N/A

145 WT

Application: Flexible Cable Sheath

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.36-1.44
Hardness	ASTM D 2240	SHORE A	68-78
Tensile Strength	ASTM D 638	n/mm2	> 12
Elongation	ASTM D 638	%‏	> 280
Thermal Stability	200°C	minutes	> 60

175 NAT (TRC)

Application: Flexible Sheath (RT1+SDI FIX+N2XY Flex) ROHS approved
Standards: IS 473 TH4, AS3808 V90/5, V90 (AS3147)

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.30-1.35
Hardness	ASTM D 2240	SHORE A	64-72
Tensile Strength	ASTM D 638	n/mm2	> 12
Elongation	ASTM D 638	%‏	> 330
Thermal Stability	200°C	minutes	> 60
Pressure Test	IEC 811	%- 90°C	50
Electrical resistance 20°C 90°C	AS 1660	Gohmxm Gohmxm	40 0.002

714 NAT

Application: Telephone insulation
Standards: BS 6746 Type 2, DIN/VDE 0207 YI3, REA 220- insulation, UL 1581- TYPE 75C

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.31-1.35
Hardness	ASTM D 2240	SHORE A	91-97
Tensile Strength	ASTM D 638	n/mm2	> 22.5
Elongation	ASTM D 638	%‏	> 200
Thermal Stability	200°C	minutes	> 60
Flame retardant	UL 94		V0

726 FRUV

Application: High Temp. insulation and sheath, flame retardant, UV Stabilized
Standards: BS 6746 Type 5, DIN/VDE 0207 Y18, YM4.
MIL-W-16878, UL 1581- TYPE 105C

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.30-1.34
Hardness	ASTM D 2240	SHORE A	90-96
Tensile Strength	ASTM D 638	n/mm2	> 19
Elongation	ASTM D 638	%‏	> 200
Thermal Stability	200°C	minutes	> 120
Flame retardant	UL 94		V0

728 NAT

Application: Flexible insulation for wire

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.50-1.54
Hardness	ASTM D 2240	SHORE A	82-92
Tensile Strength	ASTM D 638	n/mm2	> 12.6
Elongation	ASTM D 638	%‏	> 200
Thermal Stability	200°C	minutes	> 60

730 FRUV

Application: General purpose insulation and sheathing, flame retardant and weather resistance
Standards: BS 6746 T11, T12, TM1, TM2, Type 9.
DIN/VDE 0207 Y11, Y12, YM1, YM2, YM5.
IEC 60502 ST-2

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.42-1.46
Hardness	ASTM D 2240	SHORE A	85-91
Tensile Strength	ASTM D 638	n/mm2	> 15
Elongation	ASTM D 638	%‏	> 228
Thermal Stability	200°C	minutes	> 80
Flame retardant	IEEE 383		PASS
L.O.I		%	26.7

730 GN ST-2

Application: Flexible sheathing N2XY cable
Standard: IEC 60502 ST-2

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.40-1.44
Hardness	ASTM D 2240	SHORE A	86-92
Tensile Strength	ASTM D 638	n/mm2	> 15
Elongation	ASTM D 638	%‏	> 230
Thermal Stability	200°C	minutes	> 80

739 NAT

Application: Filling substance

Properties	Test Method	Units	Standard
Density	ASTM D792	gr/cm3	1.74-1.80
Thermal Stability	200°C	minutes	> 60
